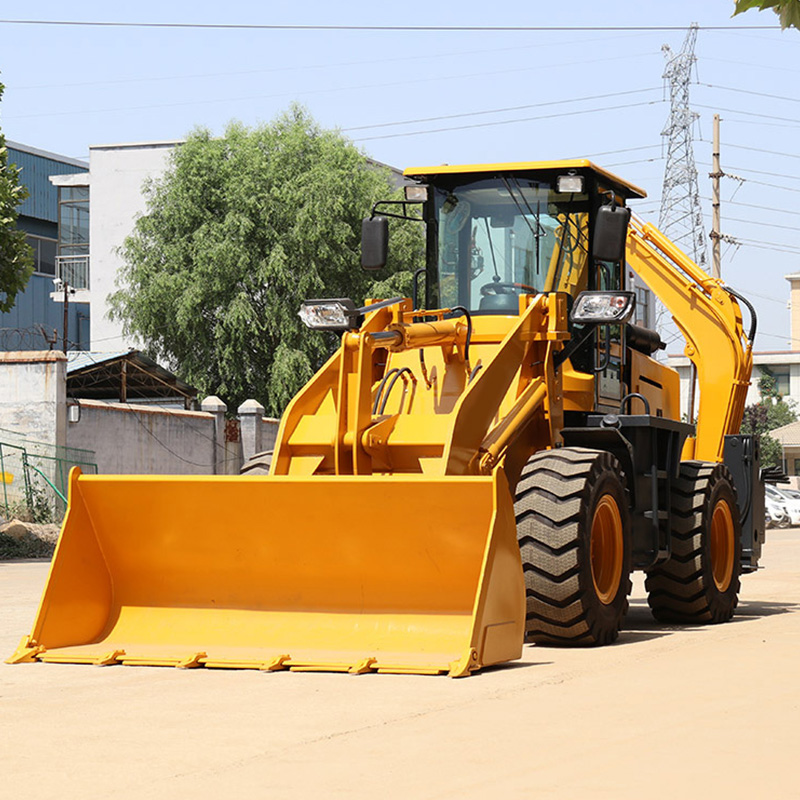

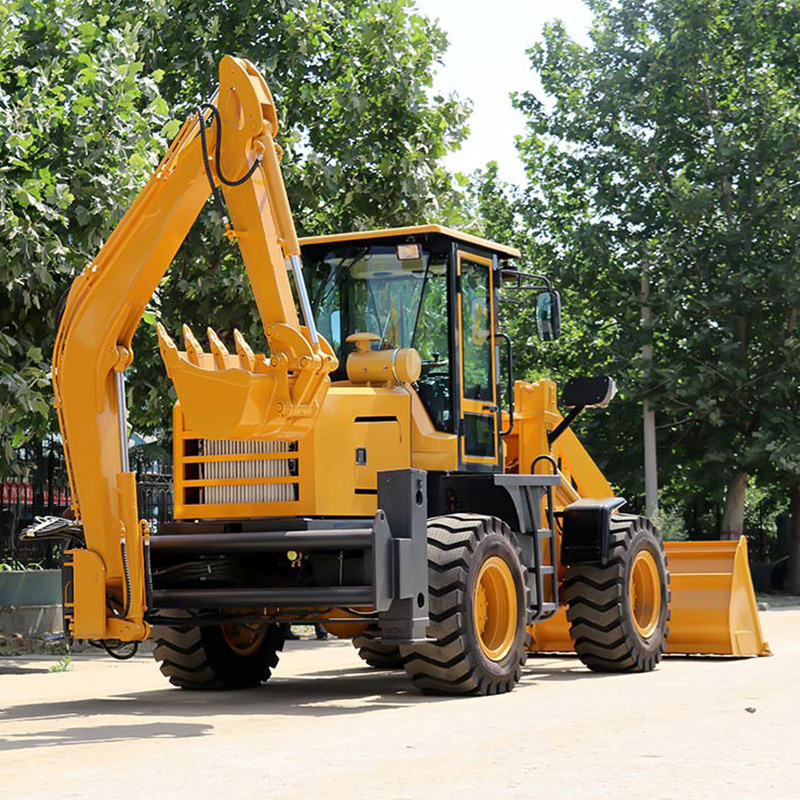

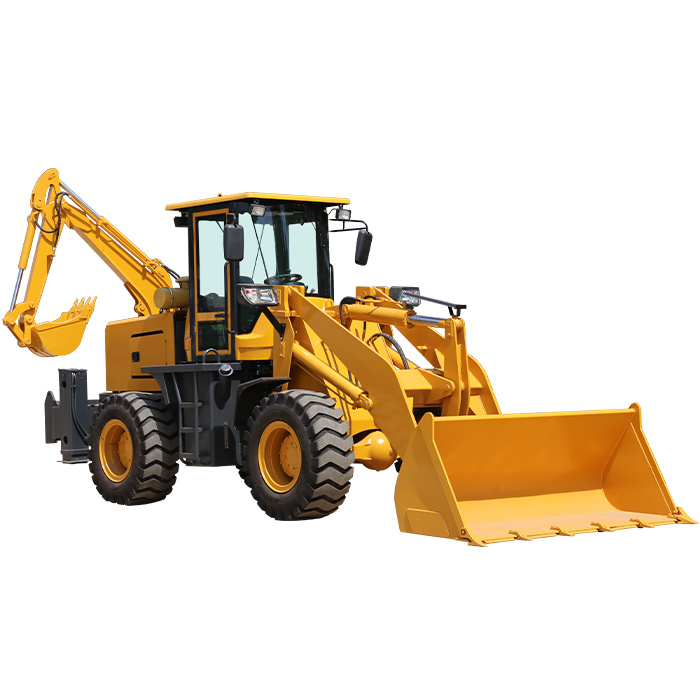

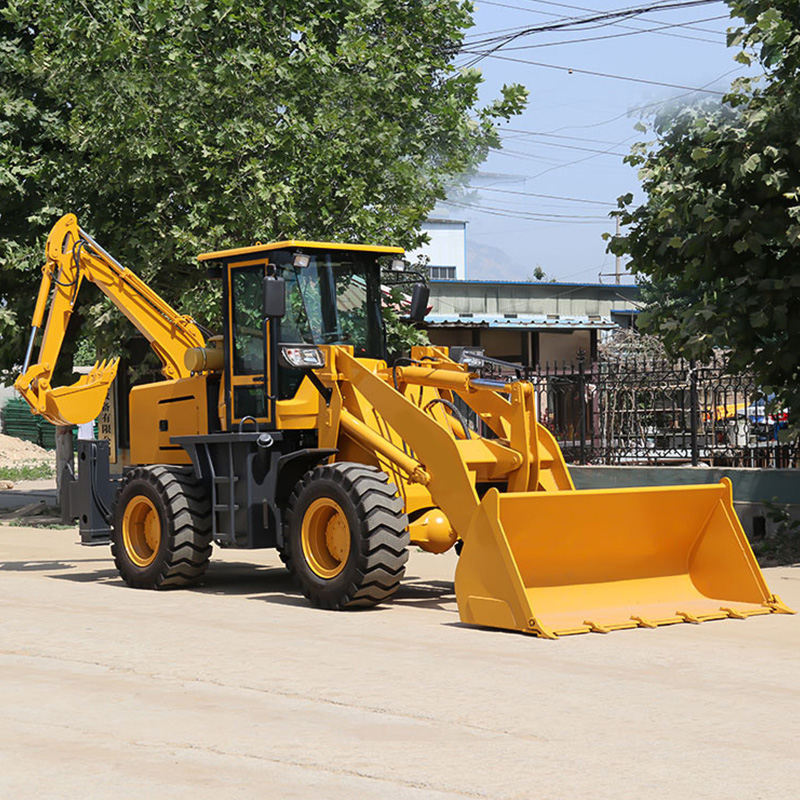

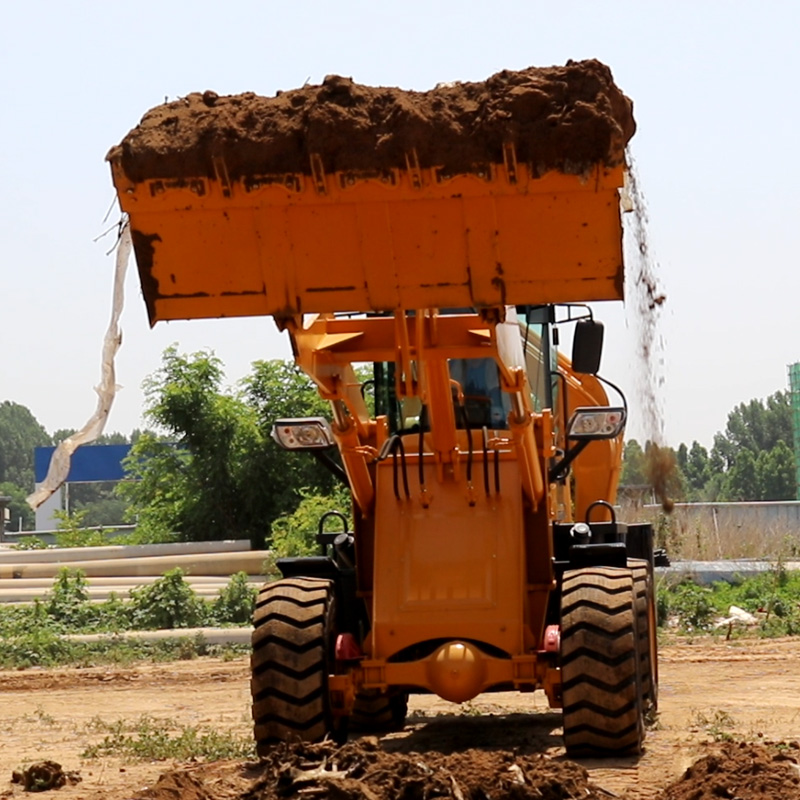

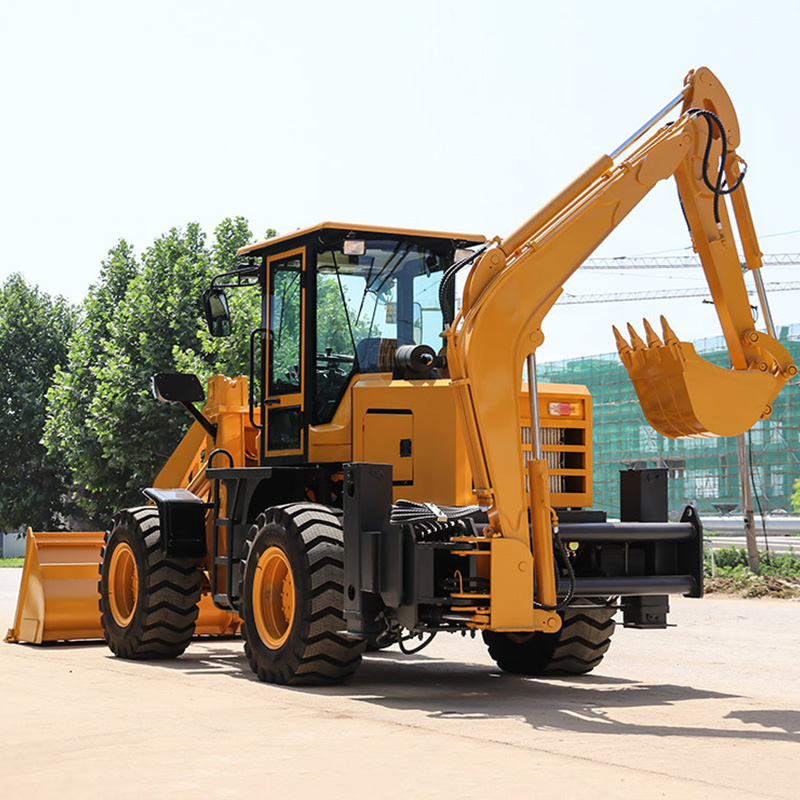

WZ25-30 3.0T Backhoe loader
Excavation unloading height：2300mm
Maximum digging radius：4600mm
Bucket width：600mm
Digging bucket capacity：0.25m³
Maximum digging height：4300mm
Maximum digging force：28KN
Excavator rotation angle：180°

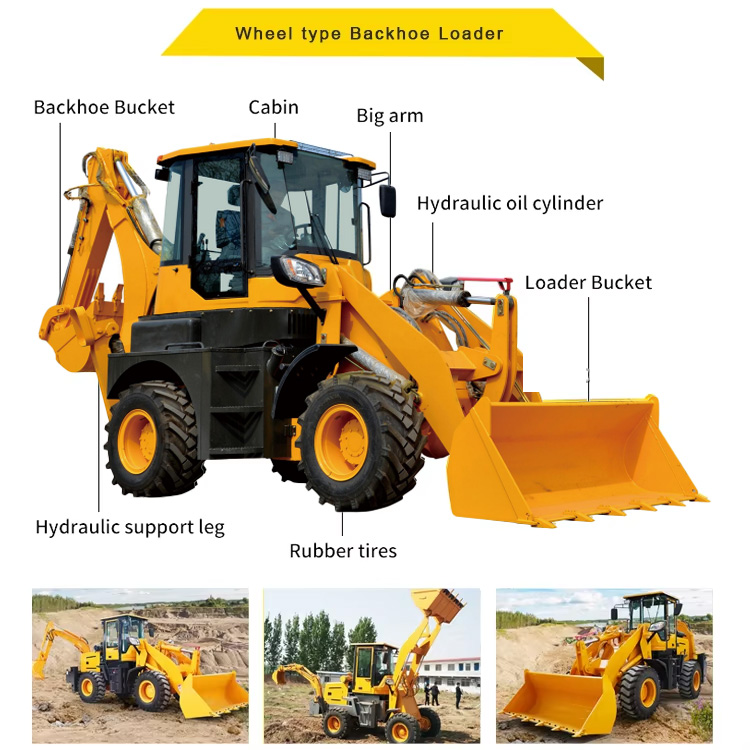

Picture Presentations |
Product Parameter |
1.Overall size | |
Overall dimensions (mm) | 6500*2040*2800 |
Axle base (mm) | 2675 |
Wheelbase (mm) | 1630 |
Minimum ground clearance (mm) | 280 |
2. Engine | |
model | Yunnei YN48GBZ |
Type | Turbocharged, four-stroke |
Rated power (KW) | 92 |
Rated speed ( r/min ) | 2400 |
Number of cylinders-inner diameter | 4-108 |
3. Performance parameters | |
System pressure (MPa) | 18 |
Overall machine weight (Kg) | 6000 |
Maximum speed (Km/h) | 28 |
Maximum climbing ability (°) | 25 |
Minimum turning radius (mm) | 4500 |
4. Mining parameters | |
Maximum digging depth (mm) | 2600 |
Excavation unloading height (mm) | 2300 |
Maximum digging radius (mm) | 4600 |
Bucket width (mm) | 600 |
Digging bucket capacity (m³) | 0.25 |
Maximum digging height (mm) | 4300 |
Maximum digging force (KN) | 28 |
Excavator rotation angle (°) | 180 |
5. Loading parameters | |
Maximum unloading height (mm) | 3500 |
Maximum unloading distance (mm) | 900 |
Bucket width (mm) | 2200 |
Loading capacity (m³) | 1.2 |
Loading maximum lifting height (mm) | 4300 |
Maximum rising power (KN) | 42 |
Forward shoveling action time sum (S) | 12 |
Transport display |
ATTACHMENTS |
FAQ |
1.Is your product customized? Thanks for yourquestion. Yes, because the working condition are different, all our productsare customized dependingon detail requirement! So if you give us moreinformation about the lift capacity, span, lift height, power source and otherspecials, we will give you a very quick quote!
2. What's the information should I provide wheninquiry? Thanks for your question. The more information you provide, theaccurate solution we can prepare for you! The information such as the liftcapacity, span, lift height, or other specials you give us will be moreappreciated.
3. How many operating methods for my selection? Thanks for yourquestion. The standard operating methods we provide is pendent controller withpush buttons. Meanwhile, we can also provide the remote control with pushbuttons and the cabin (space capsule seat) control with joystick. You canchoose any of them, just tell us!
4.The space of my workshop is limited, canthe crane ok for mine? Thanks for your question. For low headroom workshop, wehave the Special products. The detail dimension please consult our professionalengineer.
5. What's the information should I provide when inquiry?
a. What's the lifting material?
b. How much isthe maximum lifting weight of the hoist?
c. Have you installed the rails? Doyou need us supply the rails? How long is it?
d. Where are the working environment?
