1.0T Excavator
Engine horsepowe: 7.6KW/9.88HP
Engine speed: 3000rpm
GradeabilitY: 30°
Operator schema: Mechanical operation

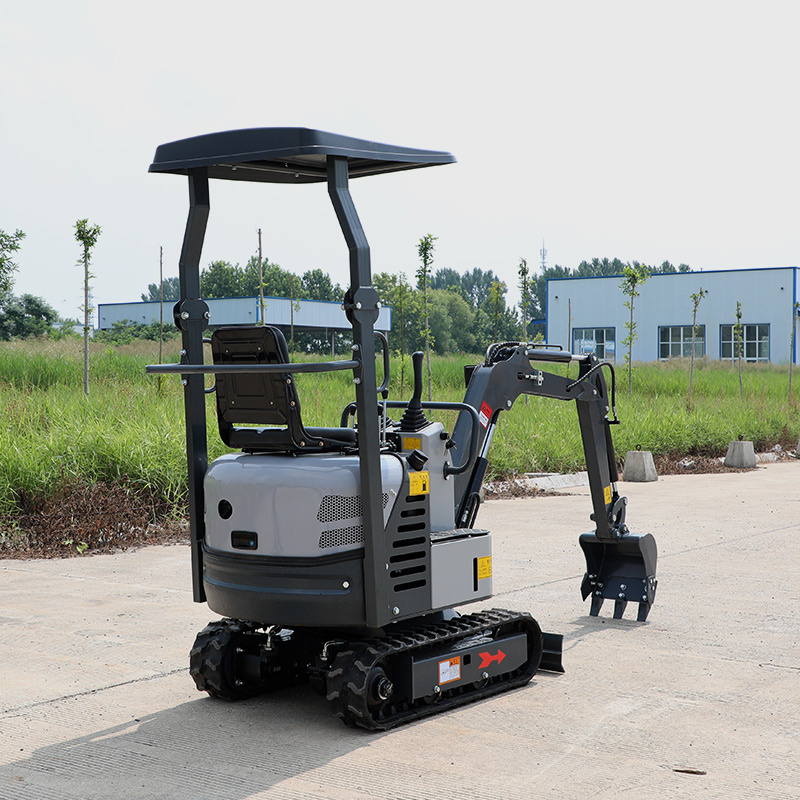

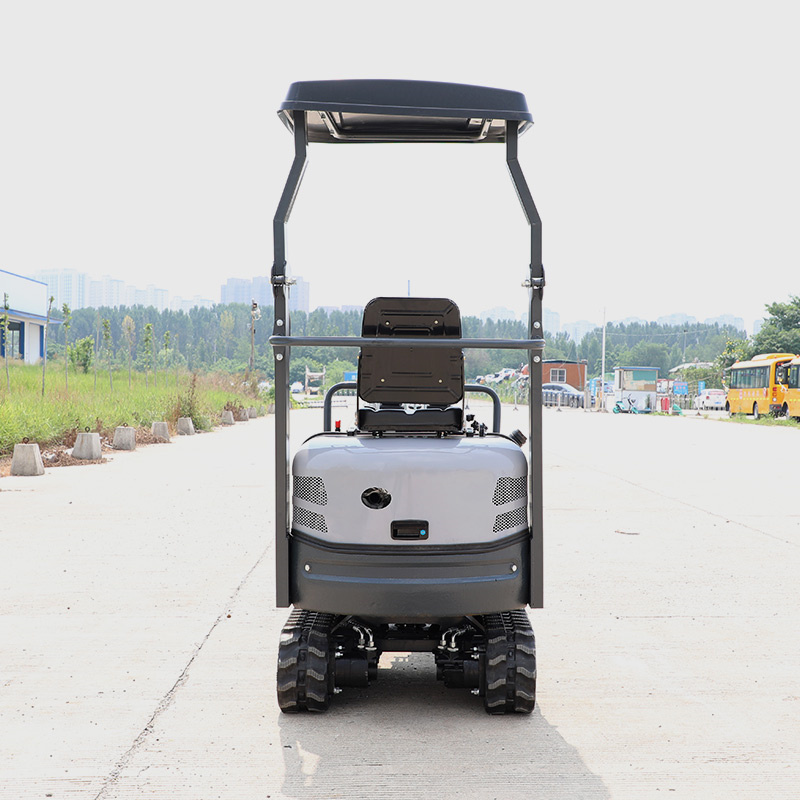

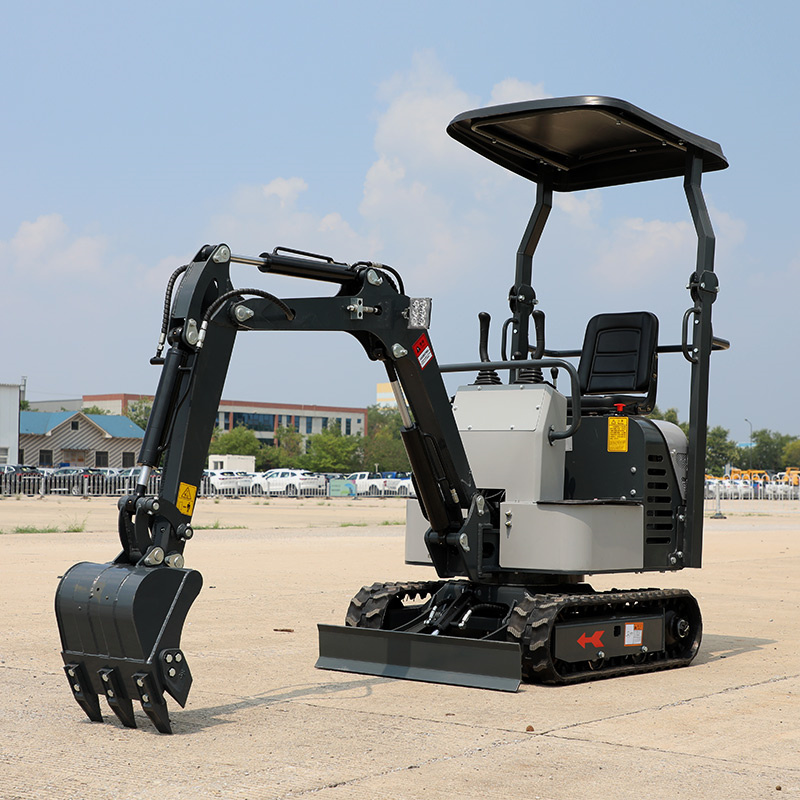

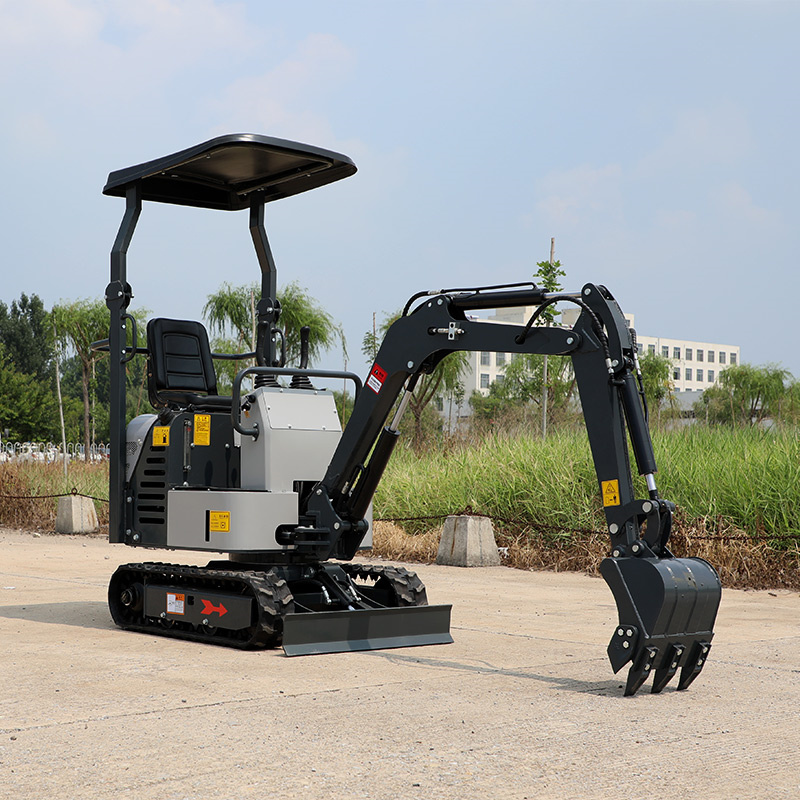

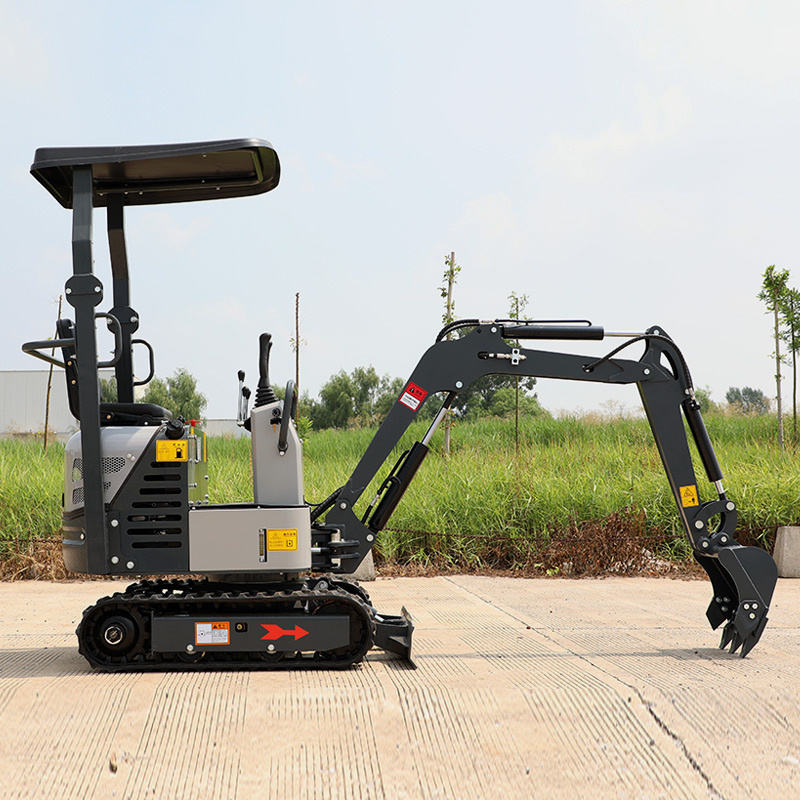

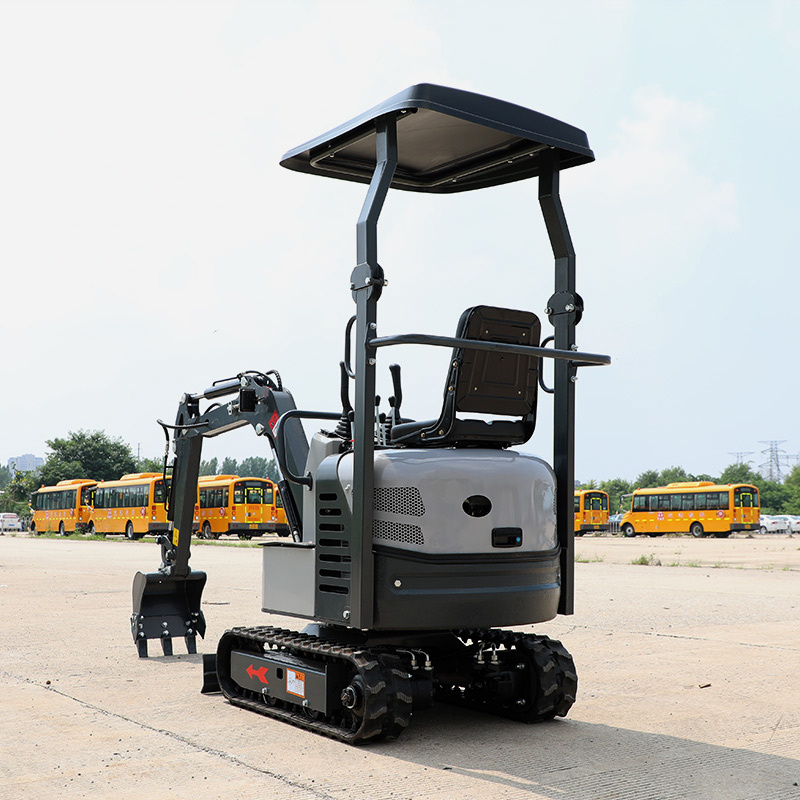

Picture Presentation |
Product Paramenters |
Overall Dimension (L * W * H) | 2200*960*2250mm |
Operating weight | 1000KG |
Engine | Popular science KD192F |
Engine horsepower | 7.6KW/9.88HP |
Engine speed | 3000rpm |
Fuel consumption | 1-1.6L |
Maximum digging depth | 1630mm |
Maximum digging height | 2750mm |
Maximum dump clearance | 1960mm |
Maximum digging radius | 2900mm |
Maximum digging distance | 2100mm |
Least radius of gyration | 1300mm |
Bulldozer lift height | 180mm |
Dozer drop depth | 210mm |
Gradeability | 30° |
Operator schema | mechanical operation |
Hydraulic tank capacity | 16L |
Diesel tank capacity | 10L |
Oil capacity | Oil gauge, fifth square |
Product Details |
Product Packaging |
ATTACHMENTS |
Extended product | Use for | |
Multi-tooth harrow |
| Can be used to loosen the soil, turn the ground, turn the grass, dig yam |
Log grapple |
| In a narrow space can be used to grab wood, grab wood, grab platycodon and so on.
|
Breaker hammer |
| It is mainly used for breaking walls in houses, breaking walls in buildings, and breaking ground in basement |
Scarifier | It is mainly used for breaking walls in houses, breaking walls in buildings, and breaking ground in basements | |
Trench hopper (20CM) |
| It is mainly used for burying pipelines, cables, optical cables, and furrowing and fertilizing fruit trees |
Tilt bucket (80CM) |
| The tilt Angle of the bucket can be controlled through the oil cylinder, the maximum angle is 45°, and the excavator can be operated without changing the position of the excavator |
Twist drill |
| The main feature is flexible and fast drilling. It is mainly used for pole drilling and tree planting. The dimensions are directly 200mm and the length is 1000mm. |
Quick connector |
| |
Hydraulic thumb hopper |
| |
Flat (38\50\80CM)
| ||
why did you choose us |
1、Our factory has 15years of production experience, can give you 100% quality assurance
2、98% of deliveries areon time
3、excellent after-salesservice
4、Factory advancedtechnology and equipment
5、90% to meet customerprocurement needs
FAQ |
1.Is your product customized? Thanks for yourquestion. Yes, because the working condition are different, all our productsare customized dependingon detail requirement! So if you give us moreinformation about the lift capacity, span, lift height, power source and otherspecials, we will give you a very quick quote!
2. What's the information should I provide wheninquiry? Thanks for your question. The more information you provide, theaccurate solution we can prepare for you! The information such as the liftcapacity, span, lift height, or other specials you give us will be moreappreciated.
3. How many operating methods for my selection? Thanks for yourquestion. The standard operating methods we provide is pendent controller withpush buttons. Meanwhile, we can also provide the remote control with pushbuttons and the cabin (space capsule seat) control with joystick. You canchoose any of them, just tell us!
4.The space of my workshop is limited, canthe crane ok for mine? Thanks for your question. For low headroom workshop, wehave the Special products. The detail dimension please consult our professionalengineer.
5. What's the information should I provide when inquiry?
a. What's the lifting material?
b. How much isthe maximum lifting weight of the hoist?
c. Have you installed the rails? Doyou need us supply the rails? How long is it?
d. Where are the working environment?
